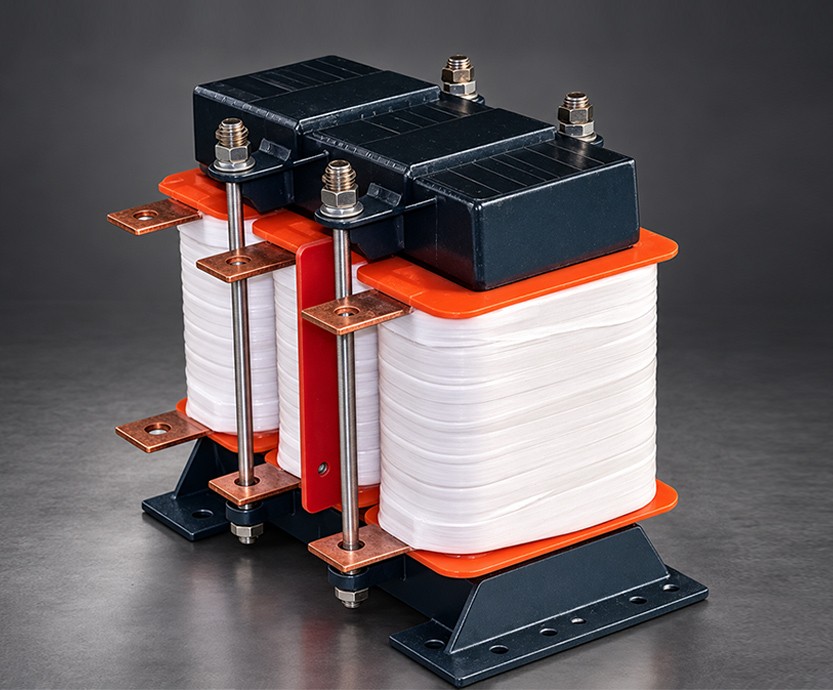

滤波电抗器-Milky way Transformer Co.,Ltd.

Product features

safe and reliable

Oil free, with strong fire resistance, eliminating the risk of oil leakage; Capable of withstanding short-circuit current and overvoltage, and adapting to harsh environments.

Eco-design

Using environmentally friendly materials, low noise and no pollution, to assist in the construction of a green power grid.

Excellent heat dissipation performance

Efficient cooling system ensures that the equipment maintains low temperature during long-term operation, effectively extending the service life of the equipment.

Convenient operation and maintenance

Humanized design, simple operation, convenient and fast daily inspection and maintenance, significantly reducing operating costs.

Durable and sturdy structure

Durable shell design, impact resistance, corrosion resistance, able to adapt to various complex and harsh working environments.

Convenient and worry free operation and maintenance

Modular structure design, supporting quick disassembly and assembly, combined with intelligent monitoring system, making operation and maintenance work more worry free and effortless.

Technical parameters

规格型号	滤波次数	电流（A）	电感（mH）	重量（kg）	安装尺寸（mm）	外形尺寸（mm）长×宽×高
LKSG-750/0.7378	5	75	0.7378	51	180×140	285×200×340
LKSG-750/0.7378	5	100	0.643	89	240×180	360×260×380
LKSG-750/0.7378	5	125	0.845	166	340×300	540×420×440
LKSG-750/0.7378	5	135	1.288	233	380×320	580×400×520
LKSG-750/0.7378	5	135	0.676	155	340×300	510×370×430
LKSG-750/0.7378	5	140	0.922	199	360×280	540×360×500
LKSG-750/0.7378	5	155	0.676	177	360×280	510×340×500
LKSG-750/0.7378	5	165	0.563	201	380×320	560×400×440
LKSG-750/0.7378	5	180	0.78	255	400×340	610×380×460
LKSG-750/0.7378	5	190	0.52	230	400×340	610×400×500
LKSG-750/0.7378	5	215	0.634	290	400×360	610×400×460
LKSG-750/0.7378	5	220	0.634	332	420×340	640×420×550
LKSG-750/0.7378	5	225	0.423	254	380×340	580×380×540
LKSG-750/0.7378	5	230	0.676	370	440×360	670×400×560
LKSG-750/0.7378	7	30	1.8	34	180×140	290×200×300
LKSG-750/0.7378	7	35	0.941	31	180×120	270×180×320
LKSG-750/0.7378	7	45	1.971	67	220×180	330×250×380
LKSG-750/0.7378	7	65	0.9	52	180×160	280×260×360
LKSG-750/0.7378	7	70	0.647	62	220×160	340×260×360
LKSG-750/0.7378	7	75	0.862	84	240×180	420×280×360

规格型号	滤波次数	电流（A）	电感（mH）	重量（kg）	安装尺寸（mm）	外形尺寸（mm）长×宽×高
LKSG-75/0.7378	7	80	0.517	50	180x140	285×220×380
LKSG-90/0.796	7	90	0.796	99	300x280	470×340×400
LKSG-100/0.995	7	100	0.995	132	280x300	480×360×390
LKSG-105/0.862	7	105	0.862	152	360x260	550×340×420
LKSG-115/0.647	7	115	0.647	140	340x260	520×360×440
LKSG-120/0.767	7	120	0.767	155	340x260	520×340×460
LKSG-125/0.047	7	120	0.047	156	360x280	550×340×460
LKSG-145/0.6	7	145	0.6	179	360x280	520×330×480
LKSG-35/0.38	11	35	0.38	18	160x100	240×160×300
LKSG-50/0.47	11	50	0.47	31.5	180x140	290×200×300
LKSG-85/0.399	11	85	0.399	63	220x180	330×200×300
LKSG-90/0.2194	11	90	0.2194	44	180x140	285×260×280
LKSG-115/0.12	11	115	0.12	37	180x140	290×220×280
LKSG-140/0.067	11	140	0.067	34	180x140	285×190×270
LKSG-140/1.201	11	140	1.201	452	460x400	690×480×600
LKSG-140/0.215	11	140	0.215	102	320x280	480×340×400
LKSG-145/1.149	11	145	1.149	435	460x400	690×480×600
LKSG-145/0.105	11	145	0.105	50	180x140	300×220×380
LKSG-145/0.245	11	145	0.245	128	320x260	480×340×440
LKSG-150/0.058	11	150	0.058	40	180x140	270×250×300
LKSG-150/0.12	11	150	0.12	68	240x155	360×250×260
LKSG-150/0.12	11	150	0.12	68	240x155	360×250×260
LKSGL-205/0.25	5	205	0.25	79	360×170	540×300×360
LKSGL-207/0.38	5	207	0.38	140	360×270	540×350×460
LKSGL-50/0.98	5	50	0.98	28	180×130	290×260×360
LKSGL-60/0.767	5	60	0.767	30	180×130	290×260×350
LKSGL-65/0.8	5	65	0.8	33	240×120	340×200×350
LKSGL-70/1.21	5	70	1.21	72	300×180	450×280×390
LKSGL-80/0.932	5	80	0.932	73	290×170	440×260×420
LKSGL-90/0.42	5	90	0.42	41	260×120	390×200×390
LKSGL-90/0.78	5	90	0.78	72	290×170	440×250×430
LKSGL-115/0.32	5	115	0.32	53	270×150	410×220×380
LKSGL-140/0.27	5	140	0.27	65	310×160	470×300×390
LKSGL-150/0.19	5	150	0.19	53	260×160	400×280×390
LKSGL-160/0.33	5	160	0.33	91	330×180	495×340×470
LKSGL-170/0.25	5	170	0.25	76	320×180	480×320×360
LKSGL-180/0.44	5	180	0.44	141	410×200	615×370×500
LKSGL-200/0.14	5	200	0.14	67	300×170	450×300×360
LKSGL-220/0.24	5	220	0.24	111	350×200	525×370×500
LKSGL-230/0.086	5	230	0.086	68	300×170	450×310×360
LKSGL-240/0.0675	5	240	0.0675	83	370×180	555×340×410
LKSGL-90/0.215	7	90	0.215	35	320×180	390×210×380
LKSGL-115/0.32	7	115	0.32	56	240×140	370×200×240
LKSGL-145/0.25	7	145	0.25	82	340×160	520×300×340
LKSGL-150/0.23	7	150	0.23	80	340×160	510×280×340
LKSGL-165/0.22	7	165	0.22	86	360×160	540×280×340
LKSGL-45/0.19	11	45	0.19	12	100×90	240×160×280
LKSGL-120/0.1	11	120	0.1	36	200×130	300×260×280
LKSGL-115/0.12	11	115	0.12	45	240×150	370×250×260
LKSGL-125/0.11	11	125	0.11	45	240×150	370×250×260
